Definitions for the Fun VM bytecode: opcodes, instruction format, and bytecode container API. More...

#include "value.h"
#include <stdint.h>

Include dependency graph for bytecode.h:

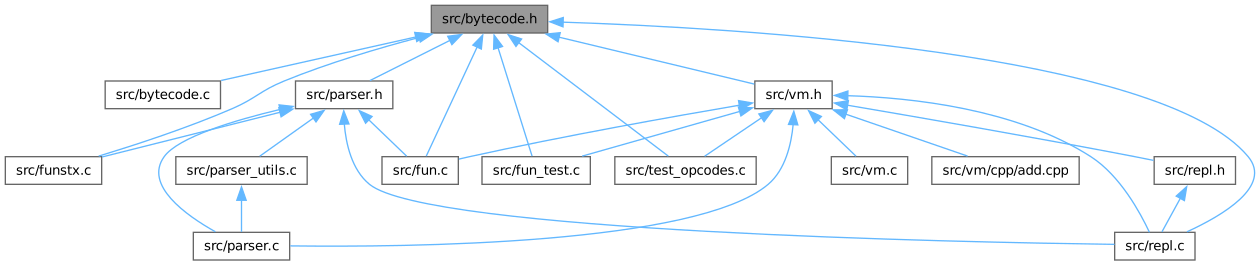

This graph shows which files directly or indirectly include this file:

Data Structures
struct	Instruction
struct	Bytecode

Typedefs
typedef struct Bytecode	Bytecode

Enumerations
enum	OpCode { OP_NOP , OP_LOAD_CONST , OP_LOAD_LOCAL , OP_STORE_LOCAL , OP_LOAD_GLOBAL , OP_STORE_GLOBAL , OP_ADD , OP_SUB , OP_MUL , OP_DIV , OP_LT , OP_LTE , OP_GT , OP_GTE , OP_EQ , OP_NEQ , OP_POP , OP_JUMP , OP_JUMP_IF_FALSE , OP_CALL , OP_RETURN , OP_PRINT , OP_ECHO , OP_HALT , OP_LINE , OP_MOD , OP_AND , OP_OR , OP_NOT , OP_DUP , OP_SWAP , OP_MAKE_ARRAY , OP_INDEX_GET , OP_INDEX_SET , OP_LEN , OP_PUSH , OP_APOP , OP_SET , OP_INSERT , OP_REMOVE , OP_SLICE , OP_TO_NUMBER , OP_TO_STRING , OP_CAST , OP_TYPEOF , OP_UCLAMP , OP_SCLAMP , OP_SPLIT , OP_JOIN , OP_SUBSTR , OP_FIND , OP_REGEX_MATCH , OP_REGEX_SEARCH , OP_REGEX_REPLACE , OP_CONTAINS , OP_INDEX_OF , OP_CLEAR , OP_ENUMERATE , OP_ZIP , OP_MIN , OP_MAX , OP_CLAMP , OP_ABS , OP_POW , OP_RANDOM_SEED , OP_RANDOM_INT , OP_MAKE_MAP , OP_KEYS , OP_VALUES , OP_HAS_KEY , OP_READ_FILE , OP_WRITE_FILE , OP_ENV , OP_INPUT_LINE , OP_PROC_RUN , OP_PROC_SYSTEM , OP_TIME_NOW_MS , OP_CLOCK_MONO_MS , OP_DATE_FORMAT , OP_ENV_ALL , OP_FUN_VERSION , OP_THREAD_SPAWN , OP_THREAD_JOIN , OP_SLEEP_MS , OP_RANDOM_NUMBER , OP_BAND , OP_BOR , OP_BXOR , OP_BNOT , OP_SHL , OP_SHR , OP_ROTL , OP_ROTR , OP_JSON_PARSE , OP_JSON_STRINGIFY , OP_JSON_FROM_FILE , OP_JSON_TO_FILE , OP_CURL_GET , OP_CURL_POST , OP_CURL_DOWNLOAD , OP_SQLITE_OPEN , OP_SQLITE_CLOSE , OP_SQLITE_EXEC , OP_SQLITE_QUERY , OP_PCSC_ESTABLISH , OP_PCSC_RELEASE , OP_PCSC_LIST_READERS , OP_PCSC_CONNECT , OP_PCSC_DISCONNECT , OP_PCSC_TRANSMIT , OP_PCRE2_TEST , OP_PCRE2_MATCH , OP_PCRE2_FINDALL , OP_OPENSSL_MD5 , OP_OPENSSL_SHA256 , OP_OPENSSL_SHA512 , OP_OPENSSL_RIPEMD160 , OP_INI_LOAD , OP_INI_FREE , OP_INI_GET_STRING , OP_INI_GET_INT , OP_INI_GET_DOUBLE , OP_INI_GET_BOOL , OP_INI_SET , OP_INI_UNSET , OP_INI_SAVE , OP_XML_PARSE , OP_XML_ROOT , OP_XML_NAME , OP_XML_TEXT , OP_SOCK_TCP_LISTEN , OP_SOCK_TCP_ACCEPT , OP_SOCK_TCP_CONNECT , OP_SOCK_SEND , OP_SOCK_RECV , OP_SOCK_CLOSE , OP_SOCK_UNIX_LISTEN , OP_SOCK_UNIX_CONNECT , OP_FD_SET_NONBLOCK , OP_FD_POLL_READ , OP_FD_POLL_WRITE , OP_EXIT , OP_OS_LIST_DIR , OP_SERIAL_OPEN , OP_SERIAL_CONFIG , OP_SERIAL_SEND , OP_SERIAL_RECV , OP_SERIAL_CLOSE , OP_TRY_PUSH , OP_TRY_POP , OP_THROW , OP_FLOOR , OP_CEIL , OP_TRUNC , OP_ROUND , OP_SIN , OP_COS , OP_TAN , OP_EXP , OP_LOG , OP_LOG10 , OP_SQRT , OP_GCD , OP_LCM , OP_ISQRT , OP_SIGN , OP_FMIN , OP_FMAX , OP_RUST_HELLO , OP_RUST_HELLO_ARGS , OP_RUST_HELLO_ARGS_RETURN , OP_RUST_GET_SP , OP_RUST_SET_EXIT , OP_CPP_ADD }
	VM operation codes executed by the Fun virtual machine. More...

Functions
Bytecode *	bytecode_new (void)
	Allocate and initialize an empty Bytecode object.
int	bytecode_add_constant (Bytecode *bc, Value v)
	Append a constant to a Bytecode's constant table.
int	bytecode_add_instruction (Bytecode *bc, OpCode op, int32_t operand)
	Append a single instruction to the instruction stream.
void	bytecode_set_operand (Bytecode *bc, int idx, int32_t operand)
	Patch the operand of a previously emitted instruction.
void	bytecode_free (Bytecode *bc)
	Free a Bytecode and all memory it owns.
void	bytecode_dump (const Bytecode *bc)
	Print a human-readable dump of constants and instructions to stdout.

Detailed Description

Definitions for the Fun VM bytecode: opcodes, instruction format, and bytecode container API.

This header declares the VM's operation codes (OpCode), the compact instruction representation (Instruction), and the owning bytecode container (Bytecode) together with minimal constructor/manipulation helpers. The concrete execution semantics for each opcode are implemented in the VM (see vm.c and vm/* handlers).

Definition in file bytecode.h.

Typedef Documentation

◆ Bytecode

typedef struct Bytecode Bytecode

Enumeration Type Documentation

◆ OpCode

enum OpCode

VM operation codes executed by the Fun virtual machine.

Unless stated otherwise, opcodes operate on the VM stack. Comments on each opcode describe stack effects using a left-to-right pop order and the value pushed as a result. For example, "pops b, a; pushes a+b" means the instruction will pop first b then a from the stack and finally push the result of a+b.

Enumerator
OP_NOP
OP_LOAD_CONST
OP_LOAD_LOCAL
OP_STORE_LOCAL
OP_LOAD_GLOBAL
OP_STORE_GLOBAL
OP_ADD
OP_SUB
OP_MUL
OP_DIV
OP_LT
OP_LTE
OP_GT
OP_GTE
OP_EQ
OP_NEQ
OP_POP
OP_JUMP
OP_JUMP_IF_FALSE
OP_CALL
OP_RETURN
OP_PRINT
OP_ECHO
OP_HALT
OP_LINE
OP_MOD
OP_AND
OP_OR
OP_NOT
OP_DUP
OP_SWAP
OP_MAKE_ARRAY
OP_INDEX_GET
OP_INDEX_SET
OP_LEN
OP_PUSH
OP_APOP
OP_SET
OP_INSERT
OP_REMOVE
OP_SLICE
OP_TO_NUMBER
OP_TO_STRING
OP_CAST
OP_TYPEOF
OP_UCLAMP
OP_SCLAMP
OP_SPLIT
OP_JOIN
OP_SUBSTR
OP_FIND
OP_REGEX_MATCH
OP_REGEX_SEARCH
OP_REGEX_REPLACE
OP_CONTAINS
OP_INDEX_OF
OP_CLEAR
OP_ENUMERATE
OP_ZIP
OP_MIN
OP_MAX
OP_CLAMP
OP_ABS
OP_POW
OP_RANDOM_SEED
OP_RANDOM_INT
OP_MAKE_MAP
OP_KEYS
OP_VALUES
OP_HAS_KEY
OP_READ_FILE
OP_WRITE_FILE
OP_ENV
OP_INPUT_LINE
OP_PROC_RUN
OP_PROC_SYSTEM
OP_TIME_NOW_MS
OP_CLOCK_MONO_MS
OP_DATE_FORMAT
OP_ENV_ALL
OP_FUN_VERSION
OP_THREAD_SPAWN
OP_THREAD_JOIN
OP_SLEEP_MS
OP_RANDOM_NUMBER
OP_BAND
OP_BOR
OP_BXOR
OP_BNOT
OP_SHL
OP_SHR
OP_ROTL
OP_ROTR
OP_JSON_PARSE
OP_JSON_STRINGIFY
OP_JSON_FROM_FILE
OP_JSON_TO_FILE
OP_CURL_GET
OP_CURL_POST
OP_CURL_DOWNLOAD
OP_SQLITE_OPEN
OP_SQLITE_CLOSE
OP_SQLITE_EXEC
OP_SQLITE_QUERY
OP_PCSC_ESTABLISH
OP_PCSC_RELEASE
OP_PCSC_LIST_READERS
OP_PCSC_CONNECT
OP_PCSC_DISCONNECT
OP_PCSC_TRANSMIT
OP_PCRE2_TEST
OP_PCRE2_MATCH
OP_PCRE2_FINDALL
OP_OPENSSL_MD5
OP_OPENSSL_SHA256
OP_OPENSSL_SHA512
OP_OPENSSL_RIPEMD160
OP_INI_LOAD
OP_INI_FREE
OP_INI_GET_STRING
OP_INI_GET_INT
OP_INI_GET_DOUBLE
OP_INI_GET_BOOL
OP_INI_SET
OP_INI_UNSET
OP_INI_SAVE
OP_XML_PARSE
OP_XML_ROOT
OP_XML_NAME
OP_XML_TEXT
OP_SOCK_TCP_LISTEN
OP_SOCK_TCP_ACCEPT
OP_SOCK_TCP_CONNECT
OP_SOCK_SEND
OP_SOCK_RECV
OP_SOCK_CLOSE
OP_SOCK_UNIX_LISTEN
OP_SOCK_UNIX_CONNECT
OP_FD_SET_NONBLOCK
OP_FD_POLL_READ
OP_FD_POLL_WRITE
OP_EXIT
OP_OS_LIST_DIR
OP_SERIAL_OPEN
OP_SERIAL_CONFIG
OP_SERIAL_SEND
OP_SERIAL_RECV
OP_SERIAL_CLOSE
OP_TRY_PUSH
OP_TRY_POP
OP_THROW
OP_FLOOR
OP_CEIL
OP_TRUNC
OP_ROUND
OP_SIN
OP_COS
OP_TAN
OP_EXP
OP_LOG
OP_LOG10
OP_SQRT
OP_GCD
OP_LCM
OP_ISQRT
OP_SIGN
OP_FMIN
OP_FMAX
OP_RUST_HELLO
OP_RUST_HELLO_ARGS
OP_RUST_HELLO_ARGS_RETURN
OP_RUST_GET_SP
OP_RUST_SET_EXIT
OP_CPP_ADD

Definition at line 35 of file bytecode.h.

Function Documentation

◆ bytecode_add_constant()

int bytecode_add_constant	(	Bytecode *	bc,
		Value	v )

Append a constant to a Bytecode's constant table.

The value is deep-copied into the table; the caller retains ownership of v and may free it independently.

Parameters

bc	Target bytecode (must not be NULL).
v	Value to store (copied).

Returns: The index of the stored constant (zero-based).

Definition at line 48 of file bytecode.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bytecode_add_instruction()

int bytecode_add_instruction	(	Bytecode *	bc,
		OpCode	op,
		int32_t	operand )

Append a single instruction to the instruction stream.

Parameters

bc	Target bytecode (must not be NULL).
op	Opcode to emit.
operand	Operand value (semantics depend on opcode).

Returns: The index of the emitted instruction (zero-based).

Definition at line 62 of file bytecode.c.

Here is the caller graph for this function:

◆ bytecode_dump()

void bytecode_dump ( const Bytecode * bc )

Print a human-readable dump of constants and instructions to stdout.

Intended for debugging and tests. Formats constants with print_value() and shows each instruction index, mnemonic and operand.

Parameters

bc	Bytecode to dump (prints "<null bytecode>" if NULL).

Definition at line 423 of file bytecode.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bytecode_free()

void bytecode_free ( Bytecode * bc )

Free a Bytecode and all memory it owns.

Frees constants (deep), instruction array, and metadata strings. Accepts NULL and is then a no-op.

Parameters

bc	Bytecode to free (may be NULL).

Definition at line 92 of file bytecode.c.

Here is the call graph for this function:

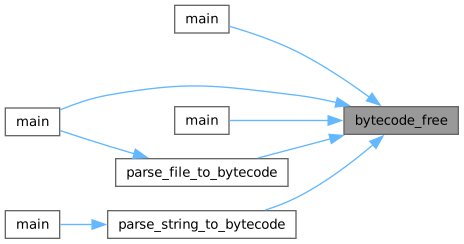

Here is the caller graph for this function:

◆ bytecode_new()

Bytecode * bytecode_new ( void )

Allocate and initialize an empty Bytecode object.

Initializes instruction and constant arrays to empty and clears metadata. Caller owns the returned pointer and must free it with bytecode_free().

Returns: Newly allocated Bytecode*, or NULL on allocation failure.

Definition at line 27 of file bytecode.c.

Here is the caller graph for this function:

◆ bytecode_set_operand()

void bytecode_set_operand	(	Bytecode *	bc,
		int	idx,
		int32_t	operand )

Patch the operand of a previously emitted instruction.

Silently ignores out-of-bounds indices.

Parameters

bc	Target bytecode.
idx	Instruction index to patch.
operand	New operand value.

Definition at line 78 of file bytecode.c.
